SW5 MPI Billet Road Camshaft Duplex Spring Kit

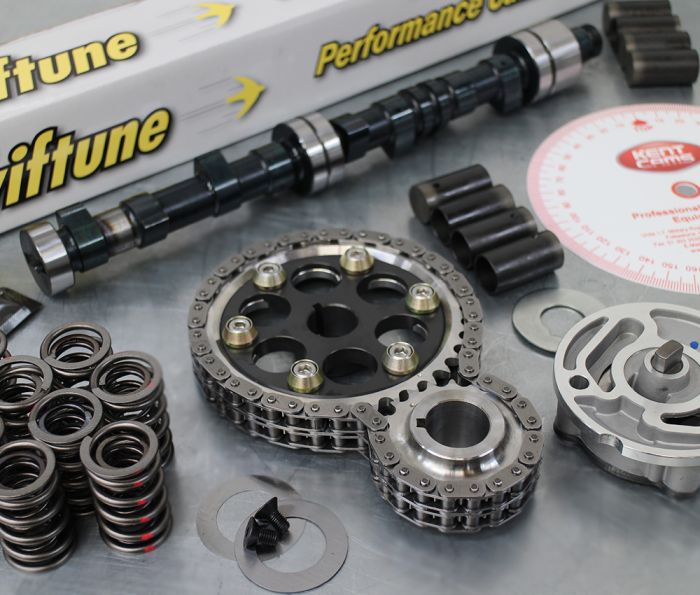

• Kit includes:
  SW5 MPI Camshaft
  Swiftune Followers
  1275 Slot Drive Oil Pump
  Lock tab Washer
  Set of Double Valve Road Springs
  Duplex Timing Gears
  Timing Disc
  Assembly Grease

SW5 MPI Camshaft

SW5 MPi suits Multi Point Injection Minis only from August 1996 to 2000.
Over many years thousands of SW5 cams have been sold for a huge range of engines from: 850cc to 1460cc, twin and single carburetters, standard and 1.5 ratio rockers, SPi and MPi injection, turbo and supercharged.
SW5 manufactured with the Cam position sensor point.
Typical output from in a nicely re-built 1293cc (+20 bore), with L3 cylinder head and 1.5 rockers using the standard ECU and normal under bonnet modifications you can expected to see around 90bhp.
With aftermarket ECU, throttle body/injection system fitted 100 BHP can be achieved.
All SW5 camshafts are machined from custom steel billet blanks!  At the heart of it, a brand new blank designed and produced using the highest quality steel with specific base lobe shapes to suite road profiles which eliminate excessive grinding of race X-drilled blanks and removing the vital surface hardening. The end result is a camshaft with deeper surface hardening and superb wear resistance.
The Swiftune SW5 camshaft was developed using Lotus Engineering's latest valve train computer software to enhance the cam profile. Manufactured using the latest CNC cam grinding technology to much closer tolerances which are so important for achieving the optimum dynamics of the cam profile. The same machine is grinding cams for Top level Motorsport customers worldwide.
The SW5 is Swiftune's exclusive design and is not available from any other source.
Why use anything else?

Swiftune Followers
The same followers we have used in all our engine builds for many years. Suitable for both road, race and everything in between.
For the best quality and reliability, our in house designed followers feature an oil drainage hole and extra length for more stability. Finished with no chamfer around the contact face to give extra diameter.
It is strongly advised that these followers are used with all SW camshafts, they have been designed specifically to suit – providing the best performance and reliability compared to other generic followers.
Please be aware - historically, if any damage is caused to the SW camshaft, it will almost always be due to non-Swiftune followers being used.

1275 Slot Drive Oil Pump
OE spec high flow oil pump

Set of Double Valve Road Springs
Double valve springs designed for high lift cams including the SW5 and SW10. Fitted at 1.380" these springs give 80lb seat pressure and 180lb pressure at 0.500" lift.

Duplex Timing Gears
Aluminium centred, infinitely adjustable Duplex timing set has steel outer gears for ultimate durability. Optimised gear design to minimise chain slack with the resulting improvement in camshaft and ignition timing accuracy. All kits now supplied with high quality Iwis Automotive timing chain. Iwis is world renowned for producing the highest quality chains and is used in all forms of high powered, high revving motorsport applications. Cam gear weight - 540 grams Set includes countersunk screws. Race proven.

Timing Disc
You will never time a cam without one of these!

Steel Top Caps
Reliability is crucial for retainers which is why we specify steel. Designed to suit Swiftune double valve springs.
