SW5 Billet Road Camshaft Duplex Spring Kit

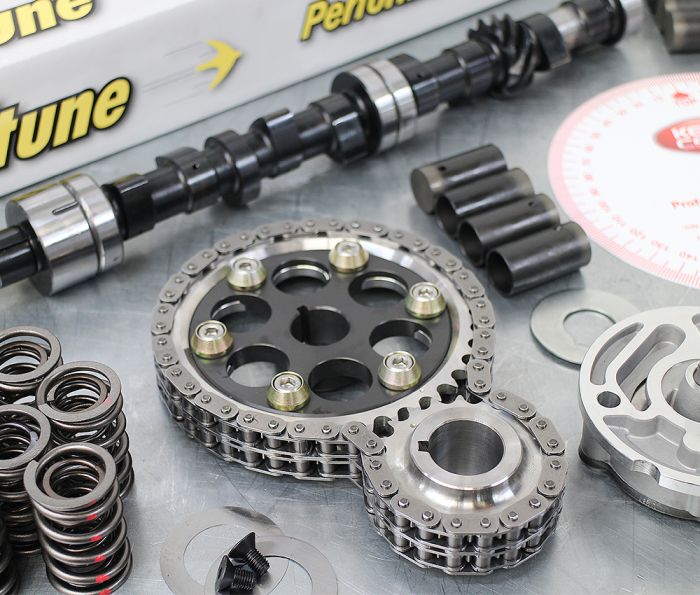

Kit includes: SW5 Camshaft Swiftune Followers Slot Drive Oil Pump Lock tab Washer Set of Double Valve Road Springs Duplex Timing Gears Timing Disc Set of Steel Top Caps Assembly Grease SW5 Camshaft Over many years, thousands of SW5 cams have been sold for a huge range of engines from: 850cc to 1460cc, twin and single carburettors, standard and 1.5 ratio rockers, SPi and MPi injection, turbo and supercharged. The secret to its success is its efficiency! On idle the HC (un-burnt fuel) reading will be as low as 250ppm (carburettor cars) an MOT fail is over 1250ppm! This means the engine is consuming all of its fuel and not wasting it out of the exhaust thus creating power! The SW5 is the ideal road camshaft; below 5500rpm it produces more power than the 286 profile. On average you will spend 90 per cent of your road driving below 5500rpm. The SW5 is still no slouch! Combined with 1380cc. 1.5 ratio rockers, L3 head and a single HIF44 it produces around 100hp with 100ft/lbs of torque pulling with wide open throttle below 2100rpm! See graph above. The same engine used with Twin H2 1.25" SU's will pull from an amazing 1800RPM with wide open throttle! All SW5 camshafts are machined from custom steel billet blanks! At the heart of it, a brand new blank designed and produced using the highest quality steel with specific base lobe shapes to suite road profiles which eliminate excessive grinding of race X-drilled blanks and removing the vital surface hardening. The end result is a camshaft with deeper surface hardening and superb wear resistance. The Swiftune SW5 camshaft was developed using Lotus Engineering's latest valve train computer software to enhance the cam profile. Manufactured using the latest CNC cam grinding technology to much closer tolerances which are so important for achieving the optimum dynamics of the cam profile. The same machine is grinding cams for Top level Motorsport customers worldwide. The SW5 is Swiftune's exclusive design and is not available from any other source Why use anything else? Swiftune Followers The same followers we have used in all our engine builds for many years. Suitable for both road, race and everything in between. For the best quality and reliability, our in house designed followers feature an oil drainage hole and extra length for more stability. Finished with no chamfer around the contact face to give extra diameter. It is strongly advised that these followers are used with all SW camshafts, they have been designed specifically to suit – providing the best performance and reliability compared to other generic followers. Please be aware - historically, if any damage is caused to the SW camshaft, it will almost always be due to non-Swiftune followers being used. Slot Drive Oil Pump OE spec high flow oil pump Set of Double Valve Road Springs Double valve springs designed for high lift cams including the SW5 and SW10. Fitted at 1.380" these springs give 80lb seat pressure and 180lb pressure at 0.500" lift. Duplex Timing Gears Aluminium centred, infinitely adjustable Duplex timing set has steel outer gears for ultimate durability. Optimised gear design to minimise chain slack with the resulting improvement in camshaft and ignition timing accuracy. All kits now supplied with high quality Iwis Automotive timing chain. Iwis is world renowned for producing the highest quality chains and is used in all forms of high powered, high revving motorsport applications. Cam gear weight - 540 grams Set includes countersunk screws. Race proven. Timing Disc You will never time a cam without one of these! Steel Top Caps Reliability is crucial for retainers which is why we specify steel. Designed to suit Swiftune double valve springs.
